유·무선가속도기울기센서
무선3축가속도센서SmartSensor AX-3D Xrange
BEST Good
-
무선 3축 가속도계
-
무선 충격감지 가속도계
-
고성능 무선 가속도계
-
무선 경사계
-
무선 경사계(높은 정확도)
-
고성능 무선 경사계
제품사양
- 측정 범위 : ± 2g 또는 ± 10g
- 매우 낮은 노이즈 밀도 : 45 μg / √ Hz (± 2g 버전), 100 μg / √ Hz에서 (± 10g 버전)
- 650 M (LOS)의 최대 무선 범위
- 울트라 파워 무선 기술 IEEE 802.15.4
- Embedded Data를 8,000,000까지 데이터 수집 기록
- 리튬 이온 배터리 충전기와 자동 충전시스템
- 빠른 설치를 위한 비 접촉 작동
- 방수 IP67 알루미늄
제품사양
| Accelerometer Specifications | |
|---|---|
| Accelerometer technology | MEMS technology, triaxial accelerometer |
| Sensitivity | ±2g Version : 16384 counts/g ±10g Version : 3277 counts/g |
| Typical non-linearity | ±0,1% FS |
| Analog to Digital converter | 16-bits, SAR architecture (Successive Approximation Register) with temperature compensation |
Sensor frequency response (-3 dB) |
0 to 800 Hz |
| Noise spectral density | 2g version :45 μg/√Hz/ 10g version :100 μg/√Hz |
| Anti-aliasing filter | Butterworth 5th order filter-cut-off frequency : 1 Hz to 2000 Hz remotely programmable (BeanScape®) |
| RF Specifications | |
|---|---|
| Wireless Protocol Stack | IEEE 802.15.4 (2006 version) |
| WSN Topology | Point-to-Point / Star |
| Data rate | 250 Kbits/s |
| RF Characteristics | ISM 2.4GHz-16 Channels. Antenna diversity architecture designed by BeanAir® |
| TX Power | +0 dBm to +18 dBm |
| Receiver Sensitivity | -95,5 dBm to -104 dBm |
| Maximum Radio Range | 650 m (L.O.S) |
| Antenna | Antenna diversity : 2 omni-directional antenna with a gain of 3 dBi |
| Over-the-air configuration (OTAC) parameters | |
|---|---|
| Data Acquisition mode | Low Duty Cycle Data Acquisition (LDCDA) Mode: 1s to 24 hour Streaming & Streaming Packet Mode |
Sampling Rate (SPS = sample per second, in streaming packet mode) |
Minimum: 1 SPS Maximum : 4 kSPS maximum per axis (one or two axis enabled) 3,5 kSPS per axis (3-axis enabled) |
| Alarm Threshold | 2 high levels alarms & 2 low levels alarms |
Programmable Cut-off frequency (Anti-aliasing filter) |
1 - 2000 Hz |
| Power Mode | Sleeping, Sleeping with Network Listening & Active |
| TX Power | +5 dBm / +11 dBm / +15 dBm / +18 dBm |
| Others specifications | |
|---|---|
| Embedded logger | - Storage Capacity : Up to 8 millions data points (average time) |
| Integrated battery charger | Integrated Lithium-ion battery charger with high precision battery monitoring : - Overvoltage Protection, Overcurrent/Short-Circuit Protection, Undervoltage Protection - Battery Temperature monitoring |
| Current consumption @ 3,3V | - During data acquisition : 20 to 30 mA - During Radio transmission : 40 mA @ 0dBm, 80 mA @ 18 dBm - During sleeping : < 30 μA |
| Operating Temperature | -20 °C to +65 °C |
| Enclosure | Aluminium & Watertight (IP67 | Nema 6) enclosure Enclosure Dimensions (w/o antenna) L×W×H: 80×55×21mm, (135×71×30mm with antennas), Weight (battery included: 165g) |
| Shocks resistance | 60g during 50 ms |
| Norms | CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 ROHS - Directive 2002/95/EC |
| External power supply | External power supply : +8v to +28v |
| Rechargeable battery | High density Lithium-Ion rechargeable battery with a capacity of 2000 mAh |
| Power-supply bloc (Option) | Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67 | Nema 6) |
| Calibration certificate (Option) | Calibration certificate provided by Beanair A static calibration method is used on a granite surface plate DIN876 |
적용분야
| 교량 기울기 측정 | |
|---|---|
| |
| 기차바퀴 진동 측정 | |
| |
| 발전시설 진동 측정 | |
| |
| 안테나 위치 측정 | |
| |
| 차량프레임 안정성 측정 | |
| |
| 풍력발전기 진동 측정 | |
| |

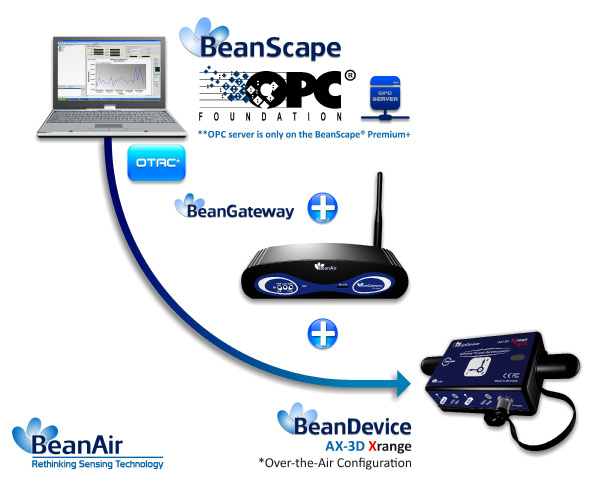

제품구성
|
