LIBSCAN

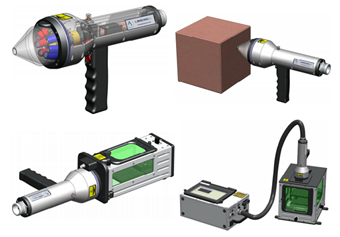

LIBSCAN50 & 100
BEST Good
제품특징
-
- Applications
- 실험실 및 현장적용
-
- Plasma 수집
- 고효율 플라즈마 수집(6 or 8 Cahnnel)
-
- Laser
- 50 mJ, 100 mJ, 1064nm laser
-
- Camere

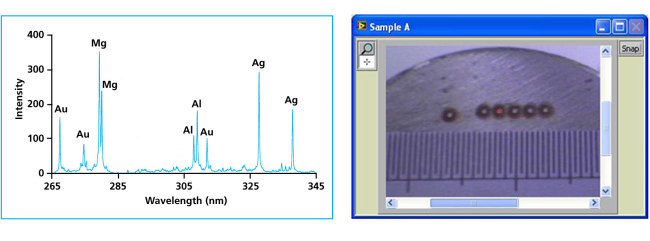

- 샘플표면의 근접 컬러에 대한 이미지 카메라 키트(옵션)
-
- Monitor
- 원격 USB 컬러모니터
-
- 가스 환기 기능
- 외부가스 공급장치에 연결
-
- Accessories
- 이동식 샘플챔버 선택가능
-
- Align
- 레이저초점 조정가능
-
- Interface
- 데이터 수집 및 소프트웨어 2년간 무료 업그레이드
-
- Best
- 가격 대비 우수한 성능
제품사양
| Spectrometer Platform | LIBSCAN 50 & 100 |
|---|---|
| Technology | Laser-Induced Breakdown Spectroscopy |
| Laser source | Q-switched Nd:YAG operating at 1064 nm (Class 4 laser device) |
| Laser pulse energy | Up to 50 mJ (LIBSCAN 50) or 100 mJ (LIBSCAN 100)-user adjustable |
| Laser pulse duration | 5-7 nanoseconds |
| Laser PRF | Up to 20 Hz (user adjustable) |
| Optical spectrograph | Spectrometer module 1: 182 nm - 254 nm, DUV detector coating, FWHM = approx. 0.05 nm |
| Spectrometer module 2: 252 nm - 312 nm, DUV detector coating, FWHM = approx. 0.04 nm |
|
| Spectrometer module 3: 311 nm - 413 nm, DUV detector coating, FWHM = approx. 0.04 nm |
|
| Spectrometer module 4: 412 nm - 497 nm, FWHM = approx. 0.03 nm | |
| Spectrometer module 5: 496 nm - 618 nm, FWHM = approx. 0.09 nm | |
| Spectrometer module 6: 617 nm - 716 nm, FWHM = approx. 0.07 nm | |
| Spectrometer module 7: 715 nm - 903 nm, FWHM = approx. 0.15 nm | |
| Spectrometer module 8: 902 nm - 1057 nm, FWHM = approx. 0.11 nm | |
| Size | LIBSCAN head: 350 x 160 x 120 mm, weight: ~4 kg |
| Spectrometer console (6-channel): 375 x 335 x 165 mm, weight: ~8 kg | |
| Spectrometer console (8-channel): 375 x 355 x 165 mm, weight: ~9 kg | |
| Laser power supply: 435 x 360 x 133 mm, weight ~14.5 kg | |
| Optional transit case: 650 x 540 x 280 mm, weight ~10 kg | |
| Umbilical | Approx. 1.8 m between LIBSCAN head and spectrometer console |
| Sample chambers | See catalogue for details of range of modular sample chambers |

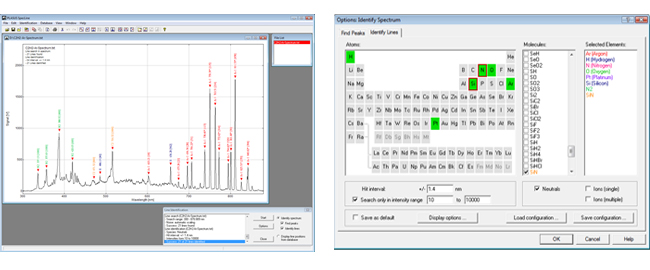

| System software | Data acquisition, processing and recording via user-friendly LIBSoft™ software |
| Sample interface | Via use of modular sample chamber or via use of LIBSCAN head alone (ie. “open beam” path to sample) |
| Power requirements | ICE 450: 100-240 VAC, 50-60 Hz, 850 VA Spectrometer console : 12 VDC (2.5A) via plug-in power supply |
