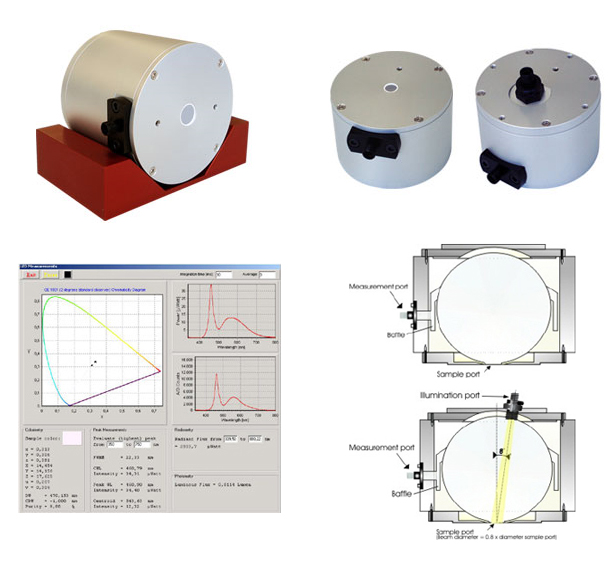

적분구
30, 50, 80mm
BEST Good
제품사양
| AvaSphere-30 | AvaSphere-50 | AvaSphere-80 | |
|---|---|---|---|
| Internal diameter | 30 mm | 50 mm | 80 mm |
| Sample port diameter | 6 mm | 10 mm | 15 mm |
| External Dimensions |
59.5 mm diameter 40 mm height |
69.5 mm diameter 60 mm height |
109 mm diameter 95 mm height |
:::::::::::::::::::::::::::::::::::::: Customized 와 Calibration service 가능합니다. ::::::::::::::::::::::::::::::::::::::
| Ordering Information | |
|---|---|
| AvaSphere-30-IRRAD | Integrat. Sphere 30mm for light measurements (250-2500nm) Sampleport 6 mm |
| AvaSphere-50-IRRAD | Integrat. Sphere 50mm, Sampleport 10 mm |
| AvaSphere-80-IRRAD | Integrat. Sphere 80mm, Sampleport 15 mm |
| AvaSphere-30-REFL | Integrat. Sphere 30mm for reflection (250-2500nm), Sampleport 6 mm 2 SMA port |
| AvaSphere-50-REFL | Integrat. Sphere 50mm for reflection (250-2500nm), Sampleport 10 mm |
| AvaSphere-80-REFL | Integrat. Sphere 80mm for reflection (250-2500nm), Sampleport 15 mm |
| AvaSphere-50-LS-HAL-12V | Integrating Sphere 50 mm for replction, built0in halogen light source, sample-port 10 mm |
| AvaSphere-LED-ADR | Cylindrical Adapter to hold 3, 5, 8 mm LED’s inside the AvaSphere-50-IRRAD |
| AvaSphere-LED-ADR-80 | Cylindrical Adapter to hold 3, 5, 8 mm LED’s inside the AvaSphere-80-IRRAD |
| AvaSphere-GT50 | Optional Gloss Trap for AvaSphere-50-REFL, coated with black absorbing material. Only in combination with AvaSphere-50-REFL. |
| AvaSphere-GT50-W | Gloss Trap coated with white material to include specular reflection. standard included in AvaSphere-50-REFL. |
| AvaSphere-50-HOLD | WS-2 (-GEM) Tile holder for AvaSphere-50-REFL/LS-HAL-12V |
| AvaSphere-COL-PLUG-W | Optional replacement for collimating lens on top of AvaSphere-50-REFL to realise IRRAD functionality. |
