적분구

100, 150, 200 mm

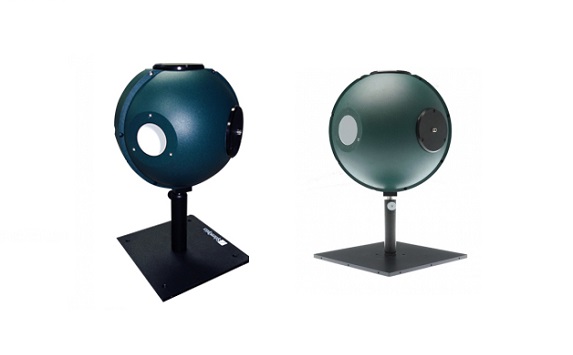

제품이미지

적분구

Large Integrating Sphere

BEST Good
제품특징
  • 제품특징 이미지
    Wavelength range
    400~1100nm
  • 제품특징 이미지
    Barium Sulfate
    코팅된 큰 사이즈
  • 제품특징 이미지
    Diameter
    100,150,200mm
    직경의 적분구
  • 제품특징 이미지
    100,150,200 적분구
    3개의 port : 0°, 90°, North Pole Port는 적분구 직경의 25%의 크기
  • 제품특징 이미지
    100,150,200 적분구
    하나의 port는 SMA 905 connector이며, 다른 두 개는샘플의 반사 port
  • 제품특징 이미지
    Best
    가격 대비
    우수한 성능
제품사양
제품사양
Model AvaSphere-100 AvaSphere-150 AvaSphere-200
Wavelength range
400-1100nm
Internal diameter
102 mm 152 mm 203 mm
Port diameter
25.4 mm 38.1 mm 50.8 mm
Port Reducers 10 mm
External Dimensions 118 mm 168 mm 218 mm


:::::::::::::::::::::::::::::::::::::: Customized 와 Calibration service 가능합니다. ::::::::::::::::::::::::::::::::::::::

제품사양
  Ordering Information
AvaSphere-100 Integrating Sphere, 100mm, 3 ports (0,90,NP), 1baffled SMA port, incl. Postmount
AvaSphere-100-SMA Additional SMA port for the AvaSphere-100
AvaSphere-100-PR10 Port reducer for the AvaSphere-100 to 10 mm
AvaSphere-100-PP Port plug for unused ports for the AvaSphere-100
AvaSphere-150 Integrating Sphere, 150mm, 3 ports (0,90,NP), 1baffled SMA port, incl. Postmount
AvaSphere-150-SMA Additional SMA port for the AvaSphere-150
AvaSphere-150-PR10 Port reducer for the AvaSphere-150 to 10 mm
AvaSphere-150-PP Port plug for unused ports for the AvaSphere-150
AvaSphere-200 Integrating Sphere, 200mm, 3 ports (0,90,NP), 1baffled SMA port, incl. Postmount
AvaSphere-200-SMA Additional SMA port for the AvaSphere-200
AvaSphere-200-PR10 Port reducer for the AvaSphere-200 to 10 mm
AvaSphere-200-PP Port plug for unused ports for the AvaSphere-200
