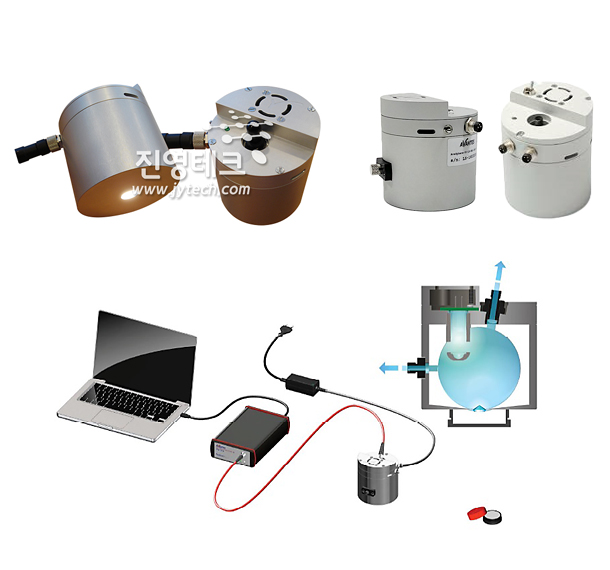

적분구
Uniform Light Source
BEST Good
제품특징
-
- Wavelength range
- 360~2500nm
-
- PTFE
- PTFE의 내부재질
-
- Diameter
- 50mm 직경의 적분구
-
- Internal halogen light source
- Halogen light source가 적분구 내에 위치
-
- Application
- 다양한 악세사리를 연결하여 광범위한 Application에 응용
-
- Best
- 가격 대비
우수한 성능
제품사양
| Specifications | |
|---|---|
| Internal diameter | 50 mm |
| Wavelength range | 360-2500 nm |
| Sample port diameter | 10 mm |
Color temperature |
2850 K |
| Stability/Drift | < 0.1% / h |
Bulb life |
4.000 hrs |
| Power requirement | 12VDC, 1A |
External Dimensions |
70 mm diameter, 82,5 mm height |
| Ordering Information | |
|---|---|
| AvaSphere-50-LS-HAL-12V | Integrating sphere 50 mm for reflection (360-2500 nm), including 5W halogen lightsource, sample port 10 mm diam., 2 SMA ports (reflection and reference) and 12V power supply. |
| AvaLight-HAL-B-5W | Replacement 5W halogen bulb for AvaSphere-50-LS-HAL-12V |
| IC-DB26-AvaSphere-0,5 | Interface cable to control switchline with AvaSpec |
| AvaSphere-50-HOLD | WS-2(-GEM) tile holder for AvaSphere-50-LS-HAL-12V for gemology applications |
