유·무선가속도기울기센서
무선3축가속도센서SmartSensor AX-3D
BEST Good
-
무선 3축 가속도계
-
무선 충격감지 가속도계
-
고성능 무선 가속도계
-
무선 경사계
-
무선 경사계(높은 정확도)
-
고성능 무선 경사계
제품사양
- 측정 범위 : ± 2g 또는 ± 10g
- 매우 낮은 노이즈 밀도 : 45 μg / √ Hz (± 2g 버전), 100μg / √ Hz에서 (±10g 버전)
- 빠른 설치를 위한 비 접촉 작동
- Streaming Packet Mode : 1 SPS - 3 kSPS (모노 채널)
- 650 M (L.O.S)의 최대 무선 범위
- 울트라 파워 무선 기술 IEEE 802.15.4E
- 슬립 모드에서 소비 전류 : <30 μA
- Embedded Data를 1,000,000까지 데이터 수집 기록
- 리튬 이온 배터리 충전기와 자동 충전시스템
- 방수 알루미늄 케이스 IP67 (크기 L x W x H: 80 x 55 x 21 mm - 무게 145g 충전지 포함) - 거친 산업 환경에 적합
- FFT 및 PPV 필터링을 위한 Scilab 스크립트 무료제공
제품사양
| Accelerometer Specifications | |
|---|---|
| Accelerometer technology | MEMS technology triaxial accelerometer |
| Sensitivity | ± 2g Version:16384 counts/g ± 10g Version: 3277 counts/g |
| Typical non-linearity | ± 0.1% FS |
| Analog to Digital converter | 16-bits, SAR architecture (Successive Approximation Register) with temperature compensation |
Sensor frequency response (-3 dB) |
0 to 800 Hz |
| Noise spectral density | ± 2g Version :45 μg/√Hz/ ± 10g Version :100 μg/√Hz |
| Anti-aliasing filter | Butterworth 5th order filter-cut-off frequency : 1 Hz to 2000 Hz remotely programmable (BeanScape®) |
| RF Specifications | |
|---|---|
| Wireless Protocol Stack | IEEE 802.15.4E |
| WSN Topology | Point-to-Point / Star |
| Data rate | 250 Kbits/s |
| RF Characteristics | ISM 2.4GHz - 16 Channels. Antenna diversity architecture designed by BeanAir® |
| TX Power | + 0 dBm/ + 11dBm/ + 18 dBm |
| Receiver Sensitivity | - 95,5 dBm to - 104 dBm |
| Maximum Radio Range | 650 m (L.O.S) |
| Antenna | Antenna diversity : 2 omni-directional antenna with a gain of 3 dBi |
| Over-the-air configuration (OTAC) parameters | |
|---|---|
| Data Acquisition mode | Low Duty Cycle Data Acquisition (LDCDA) Mode: 1 to 24 hour Streaming & Streaming Packet Mode |
Sampling Rate (SPS = sample per second, in streaming packet mode) |
Minimum: 1 SPS Maximum: 3 kSPS per axis (one axis enabled) 1.5 kSPS per axis (2-axis enabled) 1 kSPS per axis (3-axis enabled) |
| Alarm Threshold | 2 high levels alarms & 2 low levels alarms |
Programmable Cut-off frequency (Anti-aliasing filter) |
1 - 2000 Hz |
| Power Mode | Sleeping with network listening & Active |
| TX Power | + 5 dBm/ + 11 dBm/ + 18 dBm |
| Others specifications | |
|---|---|
| Embedded data logger | - Storage Capacity : up to 1 million data points (average time) |
| Integrated battery charger | Integrated Lithium-ion battery charger with high precision battery monitoring : - Overvoltage/Overcurrent/Short-Circuit/Undervoltage protection - Battery Temperature monitoring |
| Current consumption @ 3.3V | - During data acquisition : 20 to 30 mA - During Radio transmission : 40 mA @ 0 dBm, 80 mA @ 18 dBm - During sleeping: < 30 μA |
| Operating Temperature | - 20 °C to + 65 °C |
| Enclosure | Aluminium & Watertight (IP67 I Nema 6) enclosure Dimensions in mm (L x W x H): 80 x 55 x 21 mm, Weight (battery included): 145g |
| Shocks resistance | 100g during 50 ms |
| Norms | CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 ROHS - Directive 2002/95/EC |
| External power supply | External power supply : + 8 V to + 28 V |
| Rechargeable battery | High density Lithium-Ion rechargeable battery with a capacity of 1.25 Ah |
| Power-supply bloc (Option) | Wall plug-in, Switchmode power Supply 12 V @ 1,25 A with sealed M8 Plug (IP67 I Nema 6) |
| Calibration certificate (Option) | Calibration certificate provided by Beanair A static calibration method is used on a granite surface plate DIN876 |
적용분야
| 교량 기울기 측정 | |
|---|---|
| |
| 기차바퀴 진동 측정 | |
| |
| 발전시설 진동 측정 | |
| |
| 안테나 위치 측정 | |
| |
| 차량프레임 안정성 측정 | |
| |
| 풍력발전기 진동 측정 | |
| |

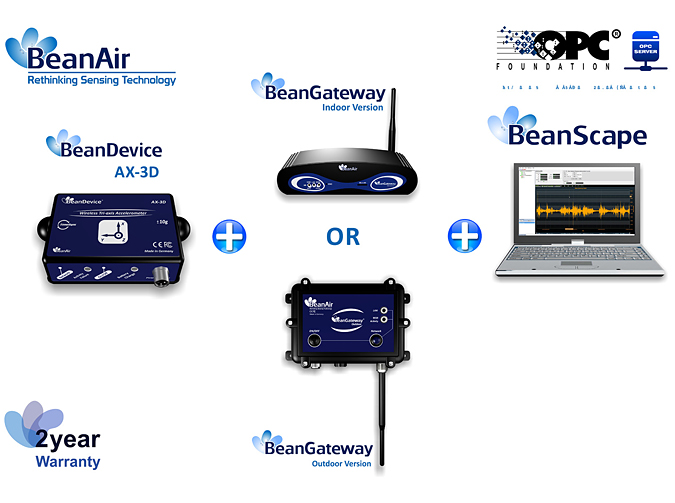

제품구성
|
