Light Source

VUV LIGHT SOURCESELECTRODELESS

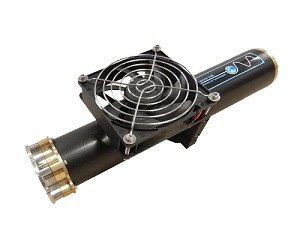

제품이미지

Light Source

ELECTRODELESS

  • 무전극 VUV 광원
  • 4개의 제품군으로 다양한 파장대역(세부사양 참조)
  • 컴팩트하며 유지보수가 쉬우며, 4000 시간의 lifetime
  • 진공챔버에 직접연결 가능
Line Continuum Molecular Aurora
BEST Good
제품특징
  • 제품특징 이미지
    Wavelength range
    다양한 파장대역
  • 제품특징 이미지
    Easy
    소형이며 유지보수가 간편
  • 제품특징 이미지
    OES 특화
    진공챔버에 직접연결
  • 제품특징 이미지
    NASA
    NASA에서 검증된 광원
  • 제품특징 이미지
    VUV
    VUV 재료연구에 특화
  • 제품특징 이미지
    Best
    가격 대비 우수한 성능
제품사양
Line source Specifications
  Min Typical Max Unit
Plasma Cavity

20W RF

30 x 9



 Mm ID
Window Material   MgF2

Drift

 @ 110V max. 0.2

1.0

% per hour
Calibration Absolute intensity determined by traceable NBS Standard
Testing Test spectrum of entire VUV spectral region performed
Running Life 1500 >4000   Hours
Case Temperature 0   55 Degrees C

Input Voltage

(50-60Hz)

100   250 AC Volts
Optional Pulsed Operation 50   400 Hz
Gas Continuum Range Flux Peaks Flux
Kr 116.5, 123.6

3 x 1015

557

 5 x 1015
Xe 147 5 x 1015   5 x 1015

Ar

 106 3 x 1013

733.4, 763.5


Hg >184.   254 2 x 1015
O 130.2 3 x 1013 115.2, 135.6, 777.4, 844.6
N 120.1 5 x 1012 149.3, 174.3
Cl 118.9 5 x 1012 55

H

 112.6 1 x 1014 250


Continuum Specifications
  Min Typical Max Unit
Plasma Cavity

2.2

30 x 9



 Mm ID
Window Material   MgF2

Drift

   0.2

1.0

% per hour
Calibration Absolute intensity determined by traceable NBS Standard
Testing Test spectrum of entire VUV spectral region performed
Running Life 1500 >4000   Hours
Case Temperature 0   55 Degrees C

Input Voltage

(50-60Hz)

100   250 AV Volts
Input Power   20   Watts

Optional Pulsed Operation

 50   400 Hz
Gas Continuum Range Flux Peaks Flux
Kr 125 - 160 3 x 1015 116.5, 1236.6 5 x 1015
Xe 147 - 190 8.5 x 1015 147 5 x 1015

Ar

 110 - 140 4 x 10
D2H2 110 - 140 1 x 1015 110 - 165 2 x 1015


Molecular Specifications
  Min Typical Max Unit
Plasma Cavity

20W RF

30 x 9



 Mm ID
Drift   0.2 1.0 % per hour

Calibration

 Absolute intensity determined by traceable NBS Standard
Testing Test spectrum of entire VUV spectral region performed
Running Life 1500     Hours
Case Temperature 0   55 Degrees C
Input Voltage 8   35 AV Volts

Input Power

 0.3   20 Watts
Optional Pulsed Operation     10 kHz
Gas Description
OH (0,0) band at 306.4nm with a typical flux of 1.5x1014photons/sec/str
NO NO gamma bands at 180-280nm with a typical flux of 4x1014photons/sec/str

CO

 CO 4th position bands at 113-140nm with a typical flux of 1x1014 photons/sec/str


Aurora Specifications
  Min Typical Max Unit
Plasma Cavity

20W RF

30 x 9



 Mm ID
Drift     1.0 % per hour

Calibration

 Absolute intensity determined by traceable NBS Standard
Testing Test spectrum of entire VUV spectral region performed
Running Life 300     Hours
Case Temperature 0   55 Degrees C
Input Voltage 20   35 AC Volts

Input Power

 6   20 Watts
Gas Description
O Green Line at 557.7nm with a radiance of 200 KRayleighs
O2 Atmospheric bands (0,0) with a radiance of 2 MRayleighs
