Pyrometer

Capella C3 Series PyrometerC3 Series

제품이미지

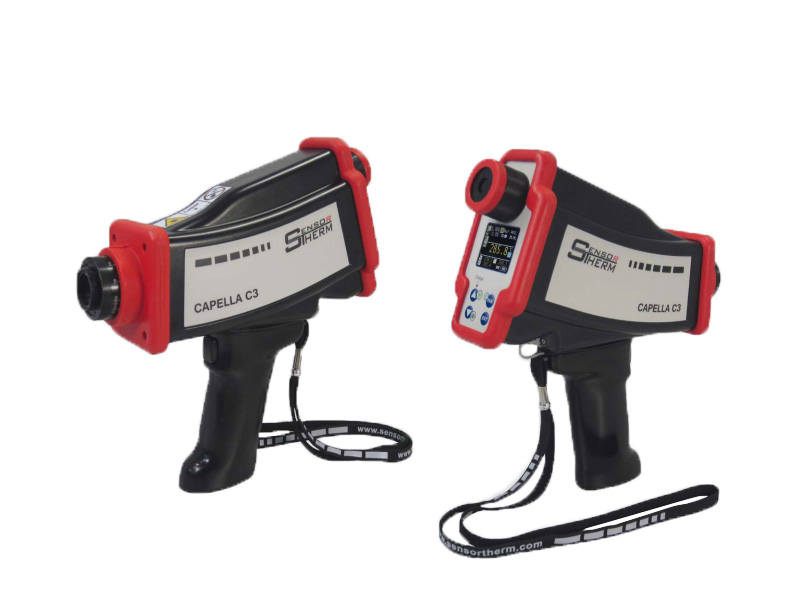

Robust Handheld Pyrometer

C3 Series

  • 휴대용 1-color & 2-color Pyrometer
  • 녹색레이져 와 뷰파인더를 이용한 듀얼 타켓팅
  • 1ms 미만의 빠른 온도측정
  • 높은 정확도
  • 최대 32,000 개의 측정데이터 저장
  • USB를 이용해 PC로 빠른 데이터 전송
  • OLED 디스플레이를 통해 측정 정보 및 다양한 정보 확인
제품문의 자료실 동영상 카달로그
BEST Good
온도범위
온도범위
Model 1-Color IR Pyrometers 2-Color IR Pyrometers
C309 C316 C318 C311 C322
Spectral Range

0.7

-

1.1μm

1.45

-

1.8μm

1.65

-

2.1 μm

0.75 - 0.93 μm

/ 0.93 - 1.1 μm

1.45 - 1.65 μm

/ 1.65 - 1.8 μm
Temperature Range

550

-

1400 °C

900

-

3000 °C

180

-

1300 °C

600

-

1400 °C

300

-

1000 °C

550

-

1400 °C

350

-

1800 °C

 -

750

-

1800 °C

350

-

1300 °C

750

-

2500 °C

400

-

2500 °C

 -

900

-

2500 °C

500

-

1800 °C

900

-

3000 °C

 - - - -

900

-

3000 °C

 - - - -
제품사양
제품사양
Model 1-Color IR Pyrometers 2-Color IR Pyrometers
C309 C316 C318 C311 C322
Detector Silicon InGaAs InGaAs 2 x Silicon 2 x InGaAs

Response

time t90

 < 1 ms (with dynamical adaptation at low signal levels)
Exposure time

< 0.5 ms
Repeatability
 0.1% of measured value 0.4% 0.1% of measured value in °C +1K
Serial interface USB 2.0 (mini USB)
Display OLED display, 160 x128 px, temperature resolution 0.1°C / °F
Display temperatures Instantaneous value, minimum value, maximum value (peak picker), average value

Power supply

 Rechargeable Li-Ion battery, 3.6 V, 3500 mAh, changeable. With protection circuit. Charge via USB port. Runtime > 8 h.
Data storage

Up to 32000 measured values including date, time, measuring parameters,

measuring location designation

Sightings (switchable)

- Laser targeting light (green, λ=515 nm, P< 1 mW, laser class 2

- Parallax-free through-lens view finder with aiming mark and temperature display with adjustable brightness attenuation for high measuring temperatures

(polarizer in the eyepiece)
Mounting thread Tripod thread 1/4 “UNC
Ambient temperature 0 - 60°C
Relative humidity Non-condensing conditions

Housing

/protect. class

 Aluminum, IP65 to DIN 40 050, handle: plastic
Weight Approx. 1200 g (2.6 lb)
CE label According to EU directives for electromagnetic immunity
초점거리
적용분야

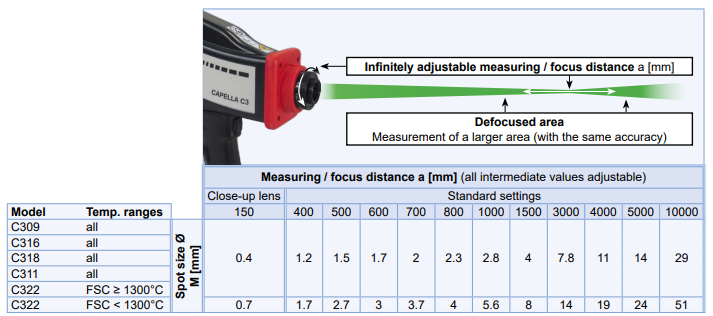

Optics with Adjustable Focus Distance
