Pyrometer

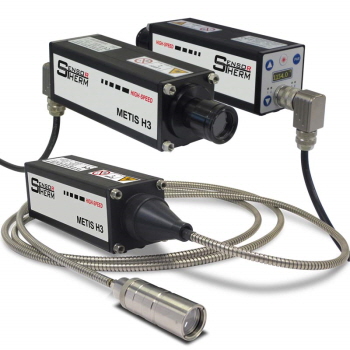

Metis H322 PyrometerH322

제품이미지

Highly Advanced, Full Featured 2-Color High-Speed Pyrometers

H322

  • 80 μs의 빠른 측정시간과 높은 정확도
  • 레이져 / 렌즈로 정확한 Alignment
  • 최대 온도 3000도까지 측정 가능, 조정 가능
  • 4~20mA 출력
  • RS-485
제품문의 자료실 동영상 카달로그
BEST Good
온도범위
온도범위
Model H322
Spectral range

Channel 1: 1.65 - 1.8 μm / channel 2: 1.45 - 1.65 μm

*) Channel 1: 1.64 μm/ channel 2: 1.4 μm
Temperature ranges 350 - 800 °C
400 - 1200 °C
500 - 1300 °C
550 - 1400 °C
700 - 2300 °C
1000 - 2500 °C
1300 - 3000 °C *)
제품사양
제품사양
Pyrometer Specification
Uncertainty
(ε = 1, t90 = 1s, TA = 23°C)

0.5% of measured value in °C + 1K
Repeatability
(ε = 1, t90 = 1s, TA = 23°C)		 0.2% of measured value in °C + 1 K
Detector 2 x InGaAs
Response time t90 < 80 μs, adjustable up to 10 s
Emissivity ε 0.050 - 1.200 (per channel, corresponds 5-120% in 0.1% steps)
Analog output 2 configurable analog outputs 0 or 4 - 20 mA, max. load: 500 Ω
Serial Interface RS485 (max. 921 kBd), resolution 0.1°C or 0.1°F
Ambient temperature

Operation: 0 to 60°C (32 to 140°F)

Fiber optic and optics on optics side: -20 to 250°C (-4 to 482°F)
Storage: -20 to 85°C (-4 to 185°F)
(The camera module is deactivated at a device temperature from 55°C to prevent its overheating)
Relative humidity No condensing conditions
Power requirement 24 V DC (18 - 30 V DC), max. 6 VA; protected against reverse polarity
Isolation Voltage supply, analog and digital outputs are galvanically isolated from each other
Housing / protection class Aluminum, IP65 to DIN 40 050 with connector
Weight 650 g
CE label According to EU directives for electromagnetic immunity
Laser targeting light

(optional) red, 650 nm, P < 1 mW, class II to IEC 60825-1
초점거리
초점거리
Focusable Optics
Optics Measuring distance
a [mm]		 Spot size M [mm]
< 1200°C ≥ 1200°C
OQ22-A2 340 mm 1.5 mm 0.9 mm
500 mm 3 mm 1.7 mm
750 mm 4 mm 2 mm
1000 mm 5.6 mm 2.8 mm
2000 mm 10 mm 4.6 mm
3000 mm 17 mm 8.8 mm
OQ22-F2 1000 mm 4.8 mm 2.7 mm
5000 mm 26 mm 14.5 mm
10000 mm 51 mm 29 mm


초점거리
Focusable Fiber Optics (25 mm outside diameter)
Optics Measuring distance
a [mm]		 Spot size M [mm]
< 1200°C ≥ 1200°C
OQ25-B2 240 mm 2 mm 1 mm
500 mm 3.7 mm 2.5 mm
750 mm 5.6 mm 3.8 mm
1000 mm 7.7 mm 5 mm
2000 mm 15.4 mm 10 mm
3000 mm 23 mm 15 mm


초점거리
Focusable Fiber Optics (Miniature 12 mm)
Optics Measuring distance
a [mm]		 Spot size M [mm]
< 1200°C ≥ 1200°C
OQ12-C0 120 mm 2.2 mm 1.2 mm
250 mm 5 mm 2.5 mm
500 mm 12 mm 6 mm
