Pyrometer

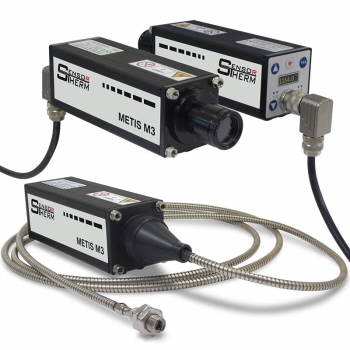

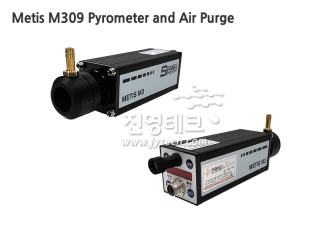

금속/레이저Metis M309 Pyrometer
BEST Good
온도범위
| Model | M309 |
|---|---|
| Spectral Range | 0.7 - 1.1 μm *) 0.78 μm |
| Temperature Range | 550 - 1400 °C |
| 600 - 1600 °C | |
| 650 - 1800 °C | |
| 750 - 2500 °C | |
| 900 - 3000 °C *) | |
| 1000 - 3300 °C*) |
제품사양
| Pyrometer | Specification |
|---|---|
| Detector | Silicon |
| Response time t90 | < 1 ms (with dynamical adaptation at low signal levels), adjustable up to 10 s |
| Uncertainty (ε = 1, t90 = 1s, TA = 23°C) |
Full-scale temperature up to 2500 °C : 0.25% of reading in °C + 1 K Full-scale temperature above 2500 °C : 0.5% of reading in °C |
| Repeatability (ε = 1, t90 = 1s, TA = 23°C) |
0.1% of reading in °C + 1 K |
| Emissivity ε | 0.050 - 1.200 (corresponds 5-120% in 0.1% steps) |
| Analog output | 2 configurable analog outputs 0 or 4?20 mA, max. load: 500 Ω |
| Serial interface | RS232 (max. 115 kBd) or RS485 (max. 921 kBd), switchable. Resolution 0.1°C or 0.1°F |
Maximum value storage (Peak Picker) |
Automatic hold mode or manual time settings to clear (reset) |
| Power requirement | 24 V DC (18 - 30 V DC), max. 6 VA; protected against reverse polarity |
| Isolation | Voltage supply, analog and digital outputs are galvanically isolated from each other |
| Ambient temperature | 0 to 80°C, focusable lens assembly: -20 to 250°C (-4 to 482°F) (The laser targeting light is deactivated at a device temperature from 60°C, the camera module from 55°C to prevent its overheating) |
| Relative humidity | No condensing conditions |
| Housing / protection class | Aluminum, IP65 to DIN 40 050 with connector |
| Weight | 650 g |
| CE label | According to EU directives for electromagnetic immunity |
| Laser pointer | (optional) red, λ=650 nm, P< 1 mW, class II to IEC 60825-1 |
초점거리
| Focusable Optics (manually adjusted or motorized focus) with laser targeting light or view finder | |||
|---|---|---|---|
| Optics | Meas. distance a [mm] | Spot size M [mm] | |
| OM09-A0 | 130 mm | 0.4 mm | |
| 160 mm | 0.5 mm | ||
| 200 mm | 0.65 mm | ||
| OM09-B0 | 190 mm | 0.5 mm | |
| 300 mm | 0.9 mm | ||
| 420 mm | 1.3 mm | ||
| OM09-C0 | 340 mm | 0.8 mm | |
| 1000 mm | 2.9 mm | ||
| 4000 mm | 13 mm | ||
| Focusable Optics (manually adjusted or motorized focus) with Color Camera Module | |||
|---|---|---|---|
| Optics | Meas. distance a [mm] | Spot size M [mm] | |
| OV09-D1 | 340 mm | 0.9 mm | |
| 1000 mm | 2.8 mm | ||
| 4000 mm | 8.8 mm | ||
| Fixed Focus Optics with laser targeting light or view finder | |||
|---|---|---|---|
| Optics | Meas. distance a [mm] | Spot size M [mm] | |
| OM89 | Fixed focus optics for smallest spot sizes and long measuring distances available on request. Distance ratio up to 900:1 (tube lengths 89 and 160 mm) | ||
| OM160 | |||
| Focusable Fiber Optics (standard 25 mm outside diameter or miniature 12 mm) with laser targeting light | |||
|---|---|---|---|
| Optics | Meas. distance a [mm] | Spot size M [mm] | |
| OL25-G0 | 75 mm | 0.45 mm | |
| 130 mm | 1 mm | ||
| 180 mm | 1.4 mm | ||
| OL25-H0 | 170 mm | 1 mm | |
| 2000 mm | 15 mm | ||
| 4500 mm | 34 mm | ||
| OL12-A0 | 100 mm | 0.9 mm | |
| 350 mm | 3.7 mm | ||
| 600 mm | 6 mm | ||
