일사량/열유속/열전도도계
Heat Flux SensorSBG04
BEST Good
제품사양
| SBG04 열유속센서 | |
|---|---|
| Measurand in SI units | irradiance in W/m2 |
| Sensor technology | both Gardon and Schmidt-Boelter |
| Rated cooling water temperature range | 10 to +30°C |
| Rated cooling water flow | > 10 l/h (0.003 l/s), preferably 30 l/h (0.01 l/s) |
| Rated measurement ranges | 100 kW/m2 |
| Response time (63 %) | <250 x10⁻³ s |
| Limiting measurement range | 150 x 10³ W/m² |
| Output signal range | >12 x 10⁻³ V at rated measurement range |
| Spectral range | 0 to 50 x10⁻⁶ m |
| Full field of view angle | 180 ° |
| Black coating emissivity | > 0.95 |
| Calibration traceability | to ITS-90 |
| Calibration laboratory | Management system certification: ISO 9001 Accreditation: not accredited |
| Calibration method | SBGC secondary calibration method according to ISO 14934-3 |
| Standard cable length | 2 m, longer cable length (option) |
제품사진

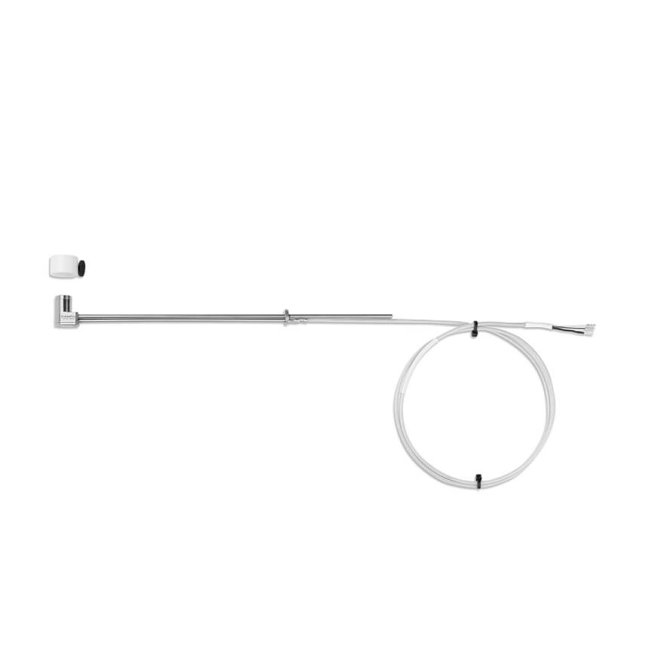

| SBG04 | |
|---|---|
|
|
 |
|
 |
|
