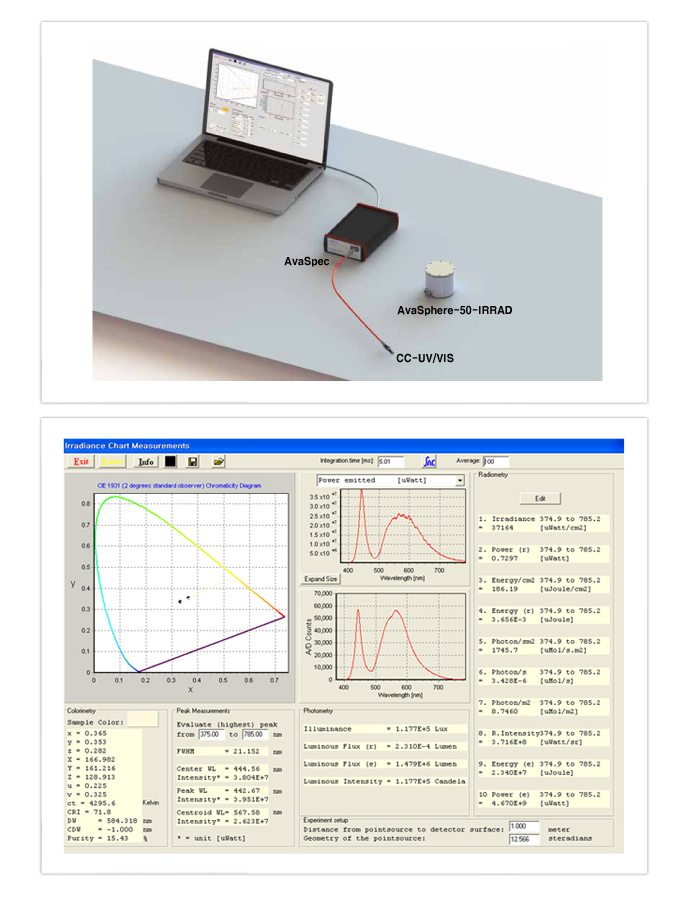

Irradiance measurements
제품사양
| Irradiance Measurement Seup | ||||
|---|---|---|---|---|
| UV Irradiance | VIS Irradiance | NIR Irradiance | ||
| Spectrometer | AvaSpec- ULS2048CL-EVO | AvaSpec-NIR256-2.5-HSC-EVO | ||
Grating UC (200-400 nm), DUV, 25 μm slit, FC/PC connector |
Grating VA (360-1100 nm), 25m slit, OSC, FC/PC connector |
Grating NIR100-2.5 FC/PC connector |
||
| Grating UA (200-1100 nm), DUV, 50 μm slit, OSC-UA, FC/PC connector |
- | |||
| Software | AvaSoft-Full and AvaSoft-IRRAD | |||
| Calibration | IRRAD-CAL-UV (200-400nm) | IRRAD-CAL-VIS (360-1100nm) | IRRAD-CAL-NIR (1100-2500 nm) | |
| IRRAD-CAL-UV/VIS (200-1100 nm) | - | |||
Light source for calibration |
AvaLight-DH-CAL Calibrated Deuterium- Halogen light source with CC-UV/VIS |
AvaLight-HAL-CAL Calibrated Halogen light source with CC- VIS/NIR |
AvaLight-HAL-CAL extra NIR Calibrated Halogen light source with CC-VIS/NIR |
|
| Fiber optics | 1 pc. FC-UVIR200-2-FC-SMA fiber 200 μm UV/VIS, 2 m, 1FC/PC, 1SMA |
FC-UVIR200-2-FC-SMA fiber 200 μm VIS/NIR, 2 m, 1FC/PC, 1SMA |
||
| Accessories | CC-UV/VIS or CC- VIS/NIR cosine corrector or AvaSphere-IRRAD integrating sphere |
CC- VIS/NIR cosine corrector or AvaSphere-IRRAD integrating sphere |
||
