일사량/열유속/열전도도계

Heat Flux SensorGG01

제품이미지

Gardon gauge water-cooled high heat flux sensor

GG01

  • 수냉식 열유속센서
  • 빠른응답시간
  • 고진공에 사용하기에 적합
  • 저렴한 가격대
  • 250/500/1000 kW W/m2 측정
제품문의 자료실 동영상 카달로그
BEST Good
제품사양
GG01 열유속센서
Measurand Heat flux
Measurement range (250, 500, 1000) x 10 3W/m2
Measurand in SI units irradiance in W/m2
Sensor technology Gardon
Rated operating temperature ranges > 50 l/h (0.014 l/s)
Nominal response time (63 %) at different rated measurement ranges
  • 250 x 10³ W/m2 : 250 x 10-3 s

500 x 10³ W/m2 : 200 x 10-3 s

1000 x 10³ W/m2 : 100 x 10-3 s
Limiting measurement range 150 % of rated measurement range
IP protection class IP67
Output signal DC voltage
Output signal range > 5 x 10-3 V at rated measurement range
Full field of view angle 180 °
Calibration traceability to ITS-90
Calibration laboratory ISO 9001
Calibration method secondary calibration method according to ISO 14934-3
Standard cable length 2 m (see options)
Order code standard version GG01/rated measurement range/cable length

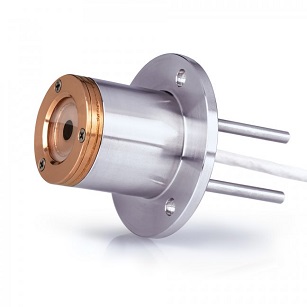

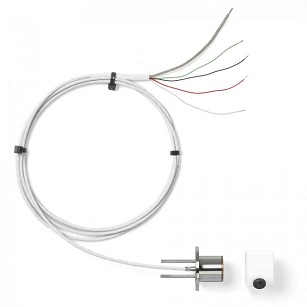

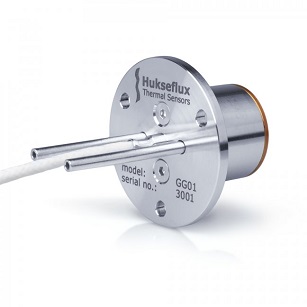

제품사진
Pictures
