일사량/열유속/열전도도계
Heat Flux SensorIHF01
BEST Good
제품사양
| IHF01 열유속센서 | |
|---|---|
| Measurand | heat flux |
| Heat flux sensor | thermopile |
| Temperature sensor | thermocouple type K |
| Sensitivity | 9 x 10-9 V/(W/m2) |
| Calibration traceability | to SI units |
| Recommended number of sensors | 2 per measurement location |
| Measurement range | (-1000 to +1000) x 103 W/m2 |
| sensor and high temperature cable | -30 to +900 °C |
| optional black coating | -30 to +650 °C |
| low temperature extension cable | -30 to +240 °C |
| IP protection class | IP67 |
| high-temperature cable | 1 m (see options) |
| low-temperature extension cable | 3 m (see options) |

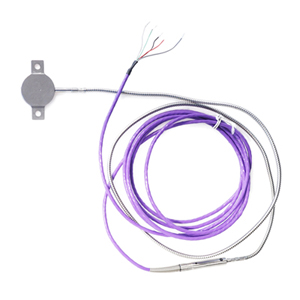

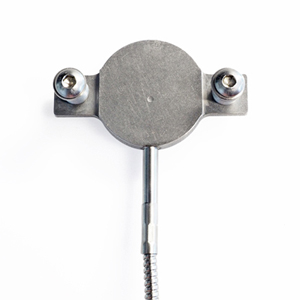

제품사진
| IHF01 | |
|---|---|
 |
|
