일사량/열유속/열전도도계

Solar Irradiance SensorsSi

제품이미지

Solar Irradiance Sensors

Si

  • Compliance with IEC 61724-1:2021, Class A
  • PT-1000 Class A analogue sensor
  • 4-wire cable
  • 4P, male M12-A connector
제품문의 자료실 동영상 카달로그
BEST Good
제품유형
제품유형
DIGITAL SI-SENSORS(RS485/MODBUS)
Type Measurements Notes
Si-RS485TC-T-MB

1. Solar irradiance

2. Cell temperature
Si-RS485TC-2T-MB

1. Solar irradiance

2. Cell temperature

3. Ambient temperature

Firmly connected ambient temperature sensor(3 m connection cable).

Optional Shield-Tamb-Si as a weather and radiation protection
Si-RS485TC-T-Tm-MB

1. Solar irradiance

2. Cell temperature

3. PV module temperature

Firmly connected module temperature sensor(3 m connection cable)

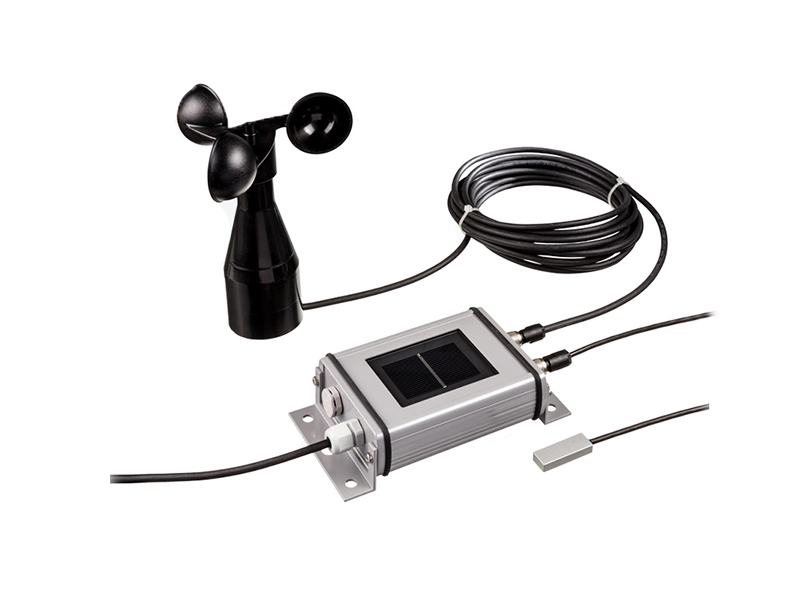

Si-RS485TC-2T-v-MB

1. Solar irradiance

2. Cell temperature

3. Temperature (PV modul or ambient temperature)

4. Wind speed

Two waterproof connectors for one temperature sensor and one wind speed sensor.

To order separately

- External sensors with preconfigurated plug

- Optional Shield-Tamb-Si as a weather and radiation protection
Si-RS485TC-3T-MB

1. Solar irradiance

2. Cell temperature

3. Temperature 1 (PV modul or ambient temperature )

4. Temperature 2 (PV modul or ambient temperature )

Two waterproof connectors for one temperature sensor(for example Tmodul-Si and

Tamb-Si). To order separately

- External sensors with preconfigurated plug

- Optional Shield-Tamb-Si as a weather and radiation protection
제품유형
ANALOGUE SI-SENSORS
Type Irradiance(at 0 to 1500 W/m²) Temperature(at -40 to +90 °C)
Si-V-10TC 0 to 10 V
Si-V-10TC-T 0 to 10 V 0 to 10 V
Si-I-420TC 4 to 20 mA
Si-I-420TC-T 4 to 20 mA 4 to 20 mA
Si-V-1.5TC 0 to 1,5 V
Si-V-1.5TC-T 0 to 1,5 V 0 to 2 V
Si-mV-85 0 to approx. 85 mV –(optional Pt100 / Pt1000)
제품사양
제품사양
Si
PV cell Monocrystalline silicon; 50 mm x 33 mm, vendor: BigSun, type: B156X1D2A-2010
Case Powder-coated aluminium, 155 mm x 85 mm x 39 mm, 350 to 470 g
Degree of protection IP 67
Operating temperature -35 to +80°C
Connection cable Length: 3 m, PUR sheath, shielded, UV and weather resistant, LiYC11Y, 4 x 0.14 mm²
Voltage supply Typical 24 VDC
Customs tariff number 90 15 80 20
