Spectrometer

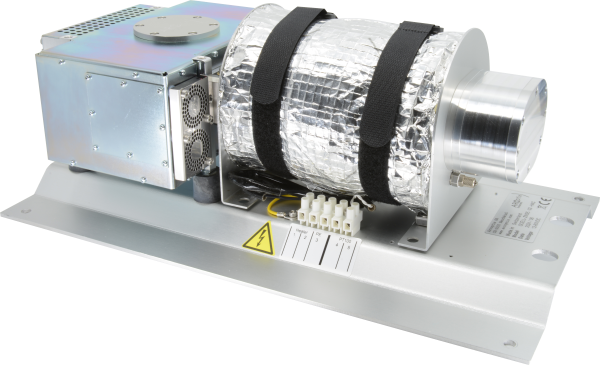

GASEXFTIR - Gas cell system for gas analyzers
BEST Good
제품특징
-
- Detector
- 4TE-MCT, 컴팩트하고 견고한 고성능 FTIR
-
- Wavelength range
- 5000 - 830 cm-1 (2-12 μm)
-
- Sensitivity
- 높은 감도와 매우 짧은 응답 시간
-
- Coating
- 로듐 코팅 내 화학성 광학
-
- Interface
- USB2.0 interface로 빠른 데이터 처리
-
- Best
- 가격대비 우수한 성능
제품사양
| FT-IR | |||
|---|---|---|---|
| model | GASEX-OEM-060-4TE | GASEX-OEM-085-4TE | GASEX-OEM-120-4TE |
| Beamsplitter material | CaF2 | ZnSe | |
| Spectral range [cm-1] | 5'000 - 1'660 | 6'600 - 1'200 | 5'000 - 830 |
| Spectral range [μm] | 2.0 - 6.0 | 1.5 - 8.5 | 2.0 - 12.0 |
| D* [cm Hz1/2W-1] | >1x10E11 | >8x10E9 | >4x10E9 |
Signal-to-noise ratio (0.5cm-1, 1 min scan) |
>55'000:1 | >35'000:1 | >35'000:1 |
| Detector type | MCT, 4 stages thermoelectrically cooled | ||
| Interferometer design | Permanently aligned with dual retro-reflector | ||
| Resolution [cm-1] | 8, 4, 2, 1 or 0.5 cm-1 | ||
| Wavenumber repetability | <10ppm | ||
| Scan frequency | >1.5 Hz @0.5cm-1 | ||
| Internal reference laser | Temperature-stabilized solid-state laser @850nm | ||
| Absotrans(TM) | Active suppression of Water and Carbon dioxide inside the interferometer housing | ||
| A/D converter | 24 bit | ||
| Operating temperature | 10°C - 40°C | ||
| Humidity | 90 % (Not condensing) | ||
| Communication interface | USB 2.0 | ||
| Built-in light source | SiC globar stabilized at 1550 K | ||
| Power requirement (FT-IR only) | <35W @ 12VDC | ||
| Software interface | Windows 7/10/11, Labview, .net compatible dll, API for controlling the instrument via our DLL | ||
| GAS CELL | ||
|---|---|---|
| Design | Multi-pass, permanently aligned, directly mateched to the FTIR | |
| Path lenghth [m ] | 5 or 0.2 (short cell) | |
| Internal volume [Litres] | 0.2 | |
| Zero gas loss | > 3 dB (less than 50 %) | |
| Operation temperature [°C] | -20 to 200 (not condensing) | |
| Construction | Aluminium with inert coating | |
| Parabolic mirrors | Aluminum body with rhodium protected gold coating | |
| Heaters for stabilization at 180°C | Electric 400 W peak power, consumption in steady state: around 30W | |
| Thermostat | PID (integrated or customizable) | |
| Operation voltage of heaters | 220 V, (customizable for other voltages) | |
| Gas connectors | 6 mm Swagelock (customizable) | |
| SYSTEM (GAS CELL + FTIR) | ||
|---|---|---|
| Dimensions [mm] | 380 x 180 x 120 | |
| Total weight [kg] | 3.9 kg | |
분해능

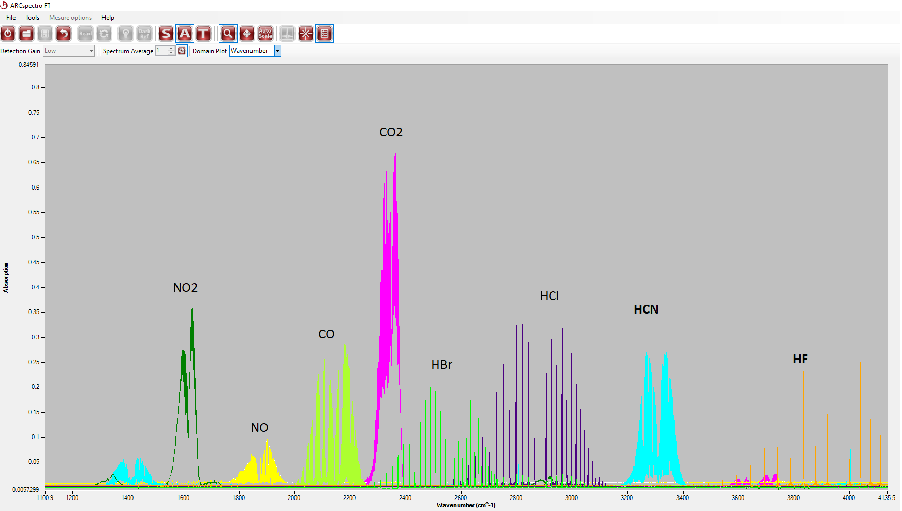

| Gases | |
|---|---|
 |
|

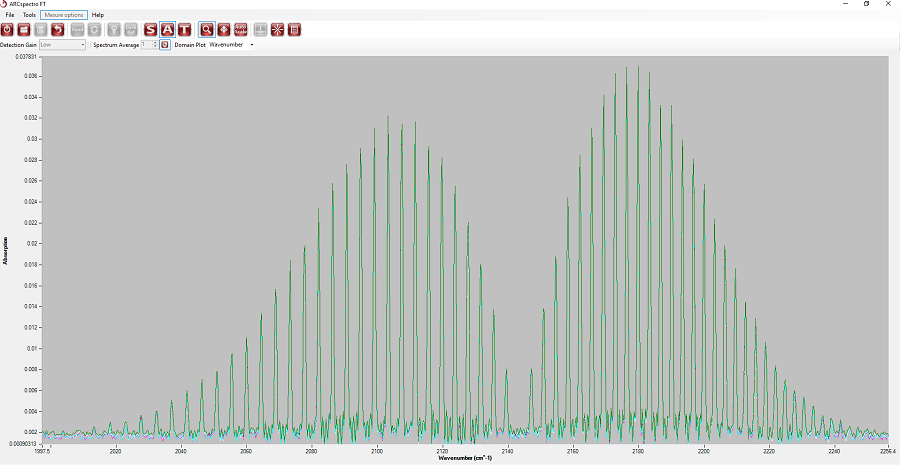

| CO Gas | |
|---|---|
 |
|

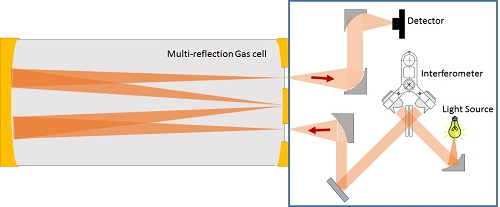

제품원리
| Principle | |
|---|---|
 |
|
