Spectrometer
EUV/VUVVS7550 VUV/UV
BEST Good
제품특징
-
- 소프트웨어 제어
- 프로그램을 통한 Grating 변경
-
- Wavelength range
- 100 - 1080 nm
넓은 파장영역대역
-
- 초소형
- 초소형, 원격조작 가능
-
- OES 특화
- 진공챔버에 직접연결
-
- USB
- 최대 10m USB케이블로 제어
-
- VUV
- VUV 대역으로 확장 가능
-
- NIST
- NIST 교정(선택사항)
-
- Best
- 가격 대비
우수한 성능
제품사양
| VS7550 Specifications | ||||
|---|---|---|---|---|
Specifications |
Minimum |
Typical/Median |
Maximum |
Unit |
| Focal Length (input) | 76.0 |
76.2 |
74.4 |
mm |
| Focal Length (output) | 41 | 46 | 48 | mm |
Wavelength Range (600) |
210 |
|
1040 |
nm |
| Wavelength Range (1200) | 104 | 1040 | nm | |
| Wavelength Range (1440) | 104 |
|
850 |
nm |
| Wavelength Range (1800) | 104 | nm | ||
| Wavelength Range (2400) | 104 |
|
510 |
nm |
| Wavelength Range (2880) | 104 | 425 | nm | |
Wavelength Range (3600) |
104 |
|
340 |
nm |
| Wavelength Range (4200) | 104 | 290 | nm | |
| Wavelength Accuracy (1200) |
|
±0.35 |
|
nm |
| Wavelength Accuracy (3600) | ±0.12 | nm | ||
| CCD QE 110-400nm | 10 |
18 |
20 |
% |
| CCD QE 400-930nm | 15 | 34 | 42 | % |
| CCD QE 930-1050nm | 3 | 12 | 15 | % |
| Resolution 1200 25 mic f3.2 | 0.4 | 0.66 | 1 | nm |
| Resolution 2400 25 mic f3.2 | 0.2 |
0.33 |
0.5 |
nm |
| Resolution 3600 25 mic f3.2 | 0.13 | 0.22 | 0.27 | nm |
| Available Gratings | From 600 to 4200 grooves per mm |
|||
| Software selectable slits, Order masks and dark | 25, 50, 100, 200, 400 microns | |||
Software selection of spectral range |
3600 l/mm grating 110 to 315 (2 steps) 1200 l/mm grating 104 to 1040 (4 steps) | |||
Software selection grating aperture |
Effective range of f# 3.2 to 8.4 | |||
| Detector | 2048 pixel linear array with VUV/UV phosphor |
|||
UHV option |
Window adapter with 2.75” Conflat TM flange | |||
Connection |
Two USB 2.0 cables for data, power and servo control | |||
| VS7550 Spectal resolution | |||
|---|---|---|---|
Grating grooves / mm |
25 mic. f/3.2 full width at half maximum (nm) |
25 mic. f/6.2 full width at half maximum (nm) |
25 mic. f/8.2 full width at half maximum (nm) |
600 |
1.61 |
1.05 |
0.91 |
1200 |
0.81 | 0.53 | 0.46 |
1440 |
0.67 |
0.44 |
0.38 |
1800 |
0.54 | 0.35 | 0.30 |
2400 |
0.40 |
0.26 |
0.23 |
2880 |
0.34 | 0.22 | 0.19 |
3600 |
0.27 |
0.18 |
0.15 |
4200 |
0.23 | 0.15 | 0.13 |
| VS7550 Accessories/Options | |
|---|---|
| Available Gratings | From 600 to 4200 grooves per mm |
| Software selectable slits/order masks/dark shutter | 25/50/100/200/400 microns |
| Software selection grating aperture | Effective range of f# 3.2 to 8.4 |
| Detector | 2048 pixel linear array with VUV/UV phosphor |
| UHV option | Window adapter with 2.75" Conflat flange |

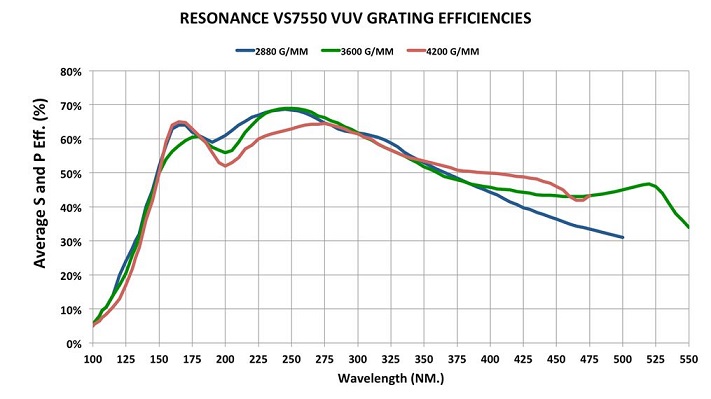

Grating Efficiencies |
|
 |
|

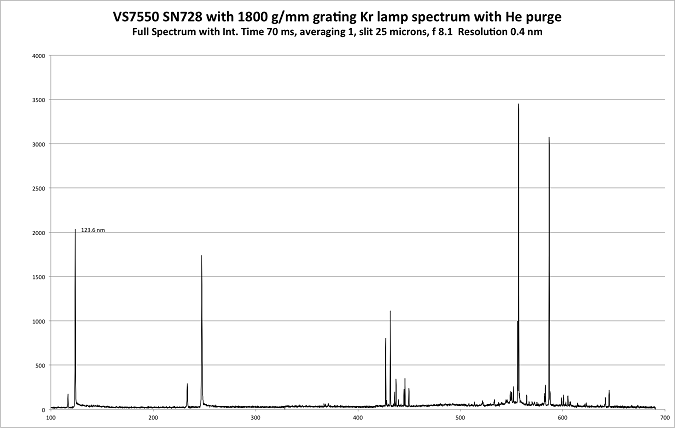

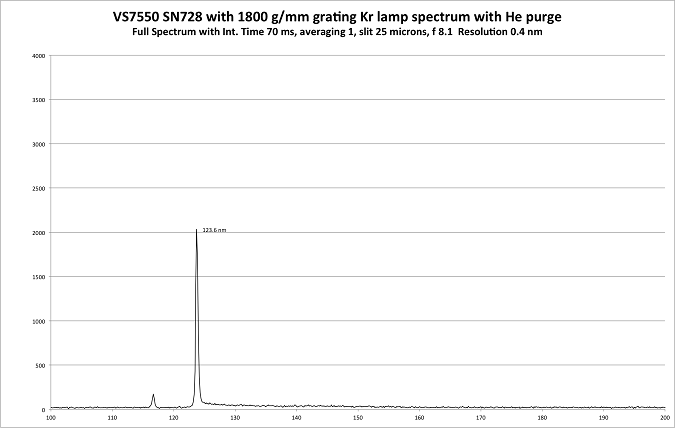

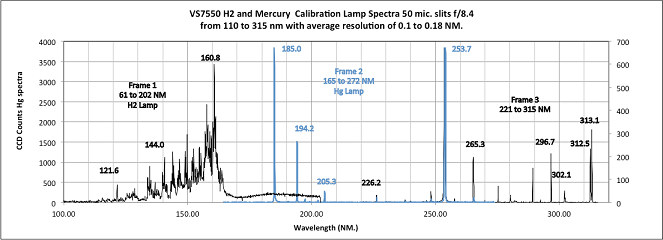

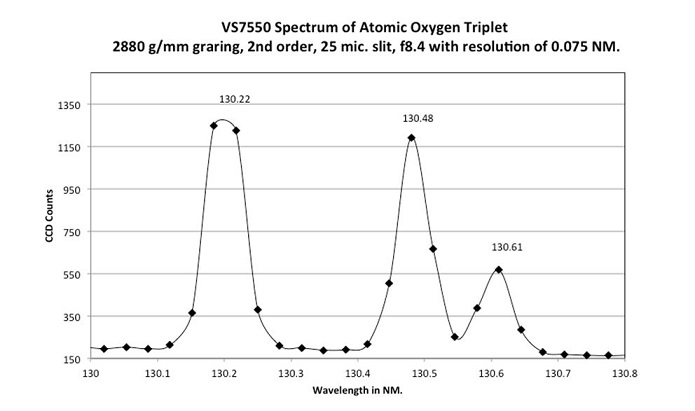

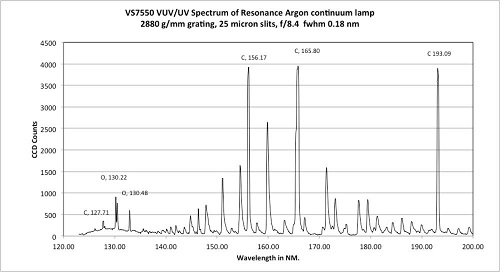

Spectra |
|
 |
|
 |
|
 |
|
 |
|
 |
|

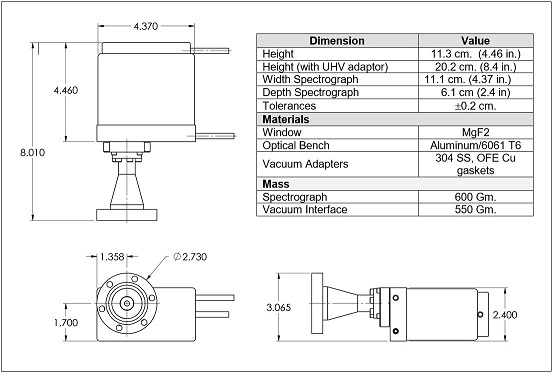

Dimensions |
|
 |
|
