일사량/열유속/열전도도계
Heat Flux SensorFHF06
BEST Good
제품사양
| FHF06 열유속센서 | |
|---|---|
| Measurand | heat flux |
| Measurand | temperature |
| Temperature sensor | type T thermocouple |
| Thermal spreaders | included |
| Rated bending radius | ≥ 7.5 x 10-3 m |
| Rated load on cable | ≤ 1.6 kg |
| Outer dimensions foil with guard | ( 25 x 50 ) x 10⁻³ m |
| Sensor thermal resistance | 12 x 10⁻⁴ K/(W/m²) |
| Sensor thickness | 0.38 x 10-3 m |
| Uncertainty of calibration | ± 5 % (k = 2) |
| Measurement range | (-20 to +20) x 10³ W/m² |
| Sensitivity (nominal) | 5 x 10⁻⁶ V/(W/m²) | Rated temperature range - Continuous use |
-70 to +250 °C |
| Rated temperature range - Cable |
-70 to +250 °C | Rated temperature range - Connection block |
-70 to +250 °C |
| Rated temperature range - Label at the end of the cable |
-40 to +120 °C |
| IP protection class | IP67 |
| Standard wire length | 2 m |
| Rated operating pressure range | up to 25 bar |

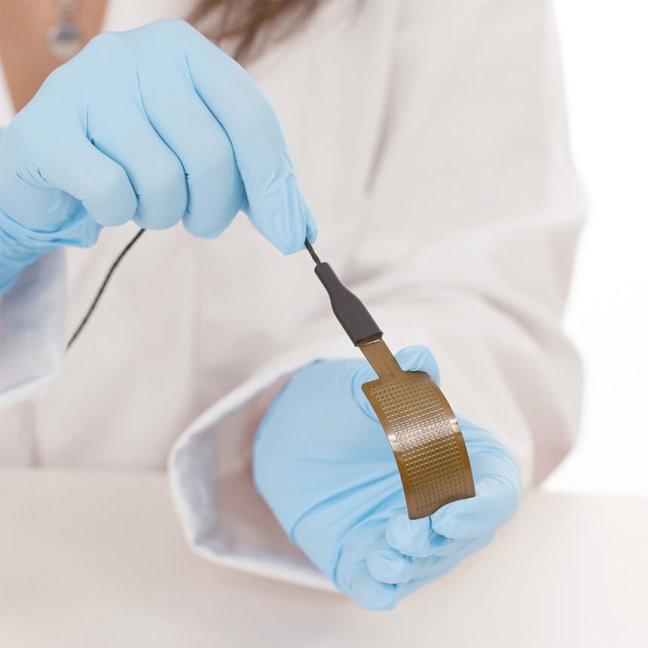

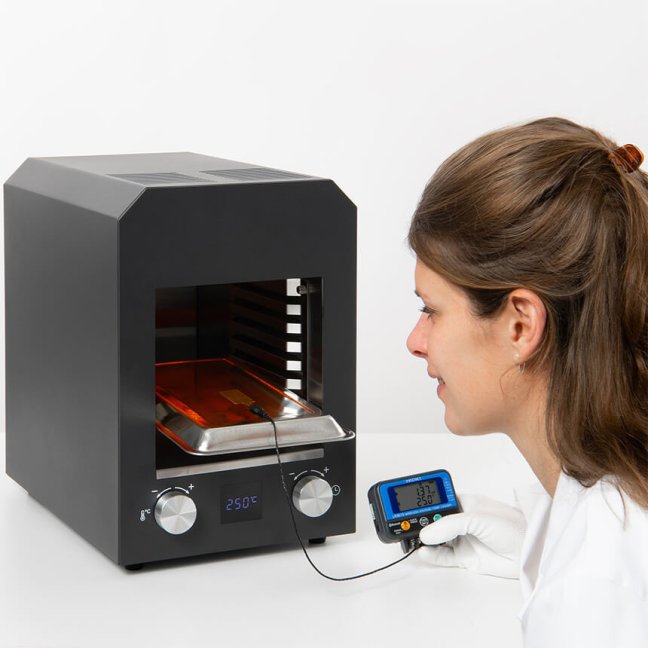

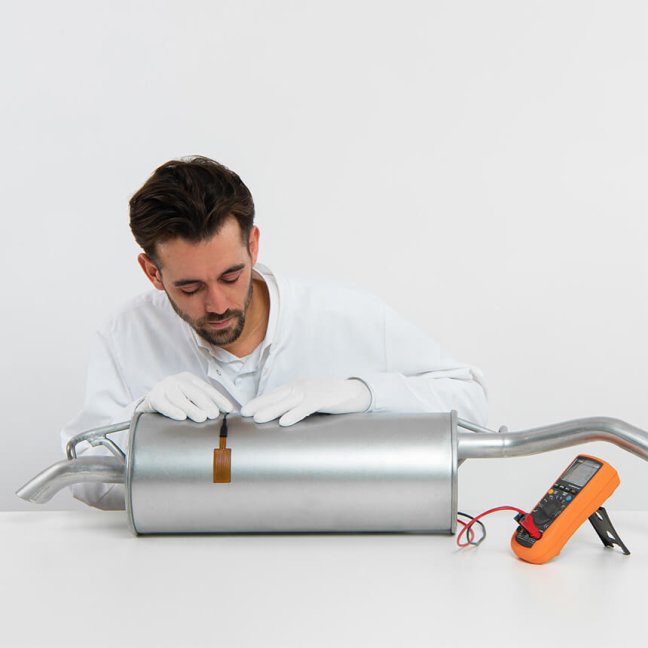

제품사진
| FHF06 | |
|---|---|
|
|
 |
|
 |
|
 |
|
