Spectrometer

FTIR-FC SpectrometerFTIR-FC with fiber in and output

FT-IR spectrometer

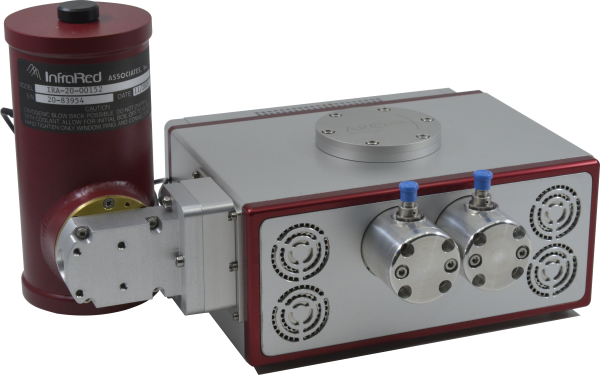

FTIR-FC with fiber in and output

  • 올인원 솔루션 (광원, 간섭계, 검출기 및 광섬유 커플러)
  • 가장 컴팩트 한 광섬유 결합형
  • 화학 공정 모니터링, 원격 가스 감지
  • InGaAs (2TE) or MCT (TE or LN2 cooled) 검출기
제품문의 자료실 동영상 카다로그
BEST Good
제품특징
  • 제품특징 이미지
    Detector
    2-stage cooled MCT Detector
  • 제품특징 이미지
    Wavelength range
    파장에 따라 선택가능
  • 제품특징 이미지
    Resolution
    4cm-1
    고분해능
  • 제품특징 이미지
    초소형
    세계에서 가장 작은 초소형 FTIR
  • 제품특징 이미지
    Interface
    USB2.0 interface로 빠른 데이터 처리
  • 제품특징 이미지
    Best
    가격대비 우수한 성능
제품사양
Models FTNIR-FC-025-2TE FTMIR-FC-060-4TE FTMIR-FC-120-4TE FTMIR-FC-160-LN2
Beam-spliter material CaF2 ZnSe
Spectral Range [cm-1] 11'000 - 4'000 5'000 - 1'660 5’000 - 830 5’000 - 650
Spectral Range [μm] 0.9 - 2.5 2.0 - 6.0 2.0 - 12.0 2.0 - 16.0
Detector Type InGaAs (2-TE cooled) MCT (4-TE cooled) MCT (LN2 cooled)

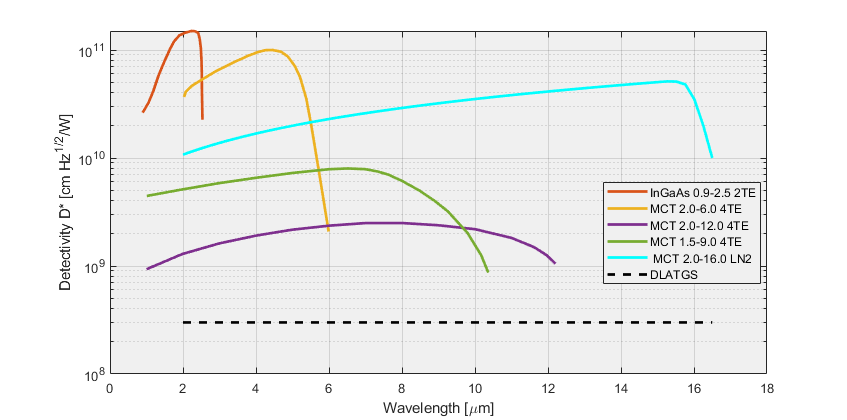

D* [cmHz1/2W-1]

>2 x 10E11 >1 x 10E11 >4 x 10E9 >5 x 10E10

Signal-to-Noise

(4cm-1 resolution, 1 min scan time)

 > 100'000:1 > 40'000:1 > 70'000:1
Recommended fiber

Low-OH, multimode

silica fiber

IFG or PIR depending

of the application

 PIR (polycrystalline) fiber
Internal reference laser

Temperature-stabilized,

@795nm

 Temperature-stabilized, @850nm
Built-in light source 20W QTH bulb (285 °K) 20 SiC globar (1550 °K)
Power requirement 40W @12VDC 30W @12VDC
Interferometer type Permanently aligned, double retro-reflector design
Resolution [cm-1] (unapodized) 8, 4, 2
Wavenumber repeatability <10PPM
Scan frequency >4 Hz @ 4cm-1
Control laser

Temperature-stabilized solid-state laser @850nm
A/D Converter 24 bit
Operating temperature 10°C - 40°C
Free-space input

Aperture Ø: 12.7mm

Acceptance full angle: 3.2°
Removable fiber-couplers

Connector: SMA 905

Fiber core Ø: up to 1mm

NA=0.25 (lensed coupler) or NA=0.3 (reflective coupler)
Communication Interface USB 2.0
Software Interface

Windows 7/10/11 API for controlling the instrument via our DLL
Dimensions 180mm x 160mm x 80mm (excluding LN2 dewar)
Weight 2200 g (excluding LN2 dewar)
동영상
적용분야
Grating & FT-NIR spectrometers comparison

This video displays the major differences between a grating based spectrometer and our FT-NIR.

A live comparison is performed between a commercially available grating spectrometer

and the ARCoptix FTNIR-L1-025-2TE.
MIR DR measurement - ARCSPHERE-MIR

This video showcases a compact and poweful platform for performing diffuse reflectance measurements

in the mid-infrared. The ARCoptix ARCSPHERE-MIR, directly coupled to the FTMIR.-L1-120-4TE,

is used as convenient sampling interface that delivers highly reproducible data.

This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).

MIR DR measurement - FTIR OEM010

with common-path accessory

This video showcases a compact and poweful platform for performing diffuse reflectance measurements

in the mid-infrared. The ARCoptix FTIR-OEM010-120-4TE is combined to our common-path accessory

to deliver high quality DR spectra from a small spot size (~1x2mm).

This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).
VIS-NIR diffuse reflectance measurement

This video illustrates how to use the ARCoptix VIS-NIR-DR spectrometer for diffuse reflectance

measurements in the VIS-NIR region of the electromagnetic spectrum. The software allows to evaluate

the total solar reflectance (TSR) value of any sample quickly and conveniently.
NIR diffuse reflectance measurement

This video illustrates how to install and use the ARCoptix FT-NIR spectrometer coupled to the ARCoptix

ARCSPHERE-NIR for diffuse reflectance measurements in the NIR.

MIR transmission measurement

This video illustrates how to use the ARCoptix FT-MIR spectrometer for transmission measurements.

Typical absorbance spectra of various polymers, such as polystyrene, are obtained using the

ARCLIGHT-MIR and the FTMIR-L1-120-4TE.
