FT-IR SpectrometerFT-IR Rocket

FT-IR spectrometer

FT-IR Rocket

세계에서 가장 작은 초소형 FTIR
높은 감도와 뛰어난 파장 안정성
고분해능 4 cm^-1
4-stage cooled MCT 검출기
광섬유 사용 또는 탈착식 광섬유 커플러를 이용한 측정

제품문의 자료실 동영상 카다로그

BEST Good

제품특징

Detector

2-stage cooled MCT Detector
Wavelength range

5000 - 830 cm^-1
(2-12 μm)
Resolution

4cm^-1
고분해능
초소형

세계에서 가장 작은 초소형 FTIR
Interface

USB2.0 interface로 빠른 데이터 처리
Best

가격대비 우수한 성능

제품사양

Models	FTIR-L1-060-4TE	FTIR-L1-085-4TE	FTIR-L1-120-4TE	FTIR-L1-160-LN2	FTIR-L1-160-DLA
Beam-splitter material	CaF2		ZnSe
Spectral Range [cm^-1]	5’000 - 1’660	6’600 - 1’200	5’000 - 830	5’000 - 650
Spectral Range [μm]	2.0 - 6.0	1.5 - 8.5	2.0 - 12.0	2.0 - 16.0

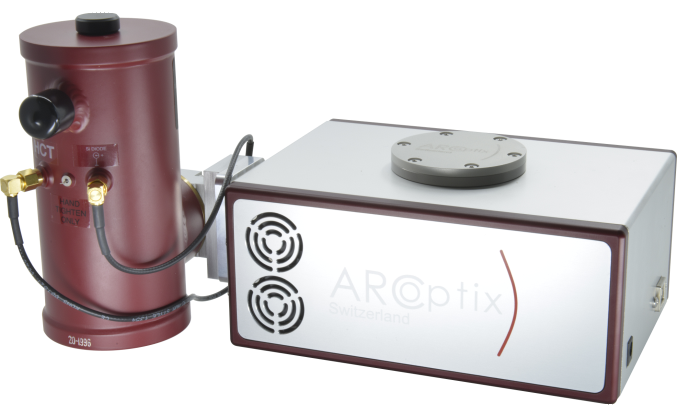

Detector Type	MCT (4-TE cooled)			MCT (LN2 cooled)	DLATGS

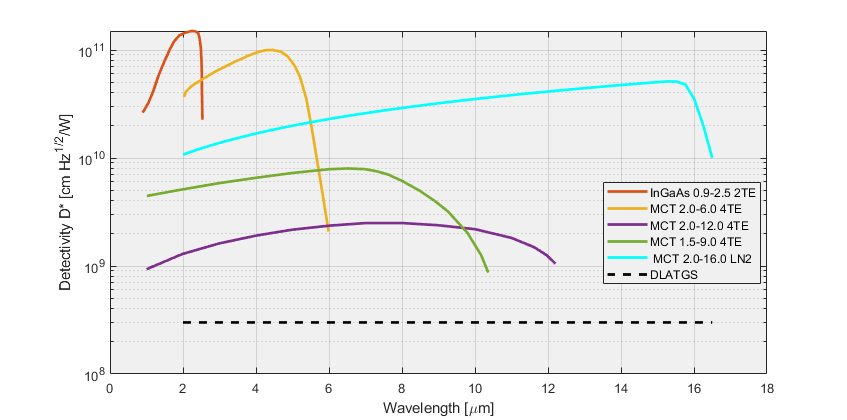

*D^ [cm Hz^1/2W^-1]**	>1x10E¹¹	>8x10E⁹	>4x10E⁹	>5x10E¹⁰	>2.5x10E⁸
Signal-to-Noise (4cm^-1 resolution, 1 min scan time)	> 80'000:1	> 40'000:1		> 70'000:1	> 8'000:1
Recommended fiber	IFG (Indium Fluoride) fibers	IFG or PIR depending of the application	PIR (polycrystalline) fiber

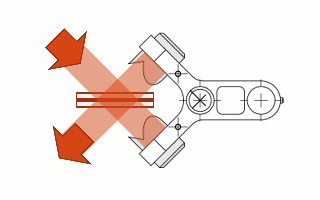

Interferometer type	Permanently aligned, double retro-reflector design
Resolution [cm^-1 ] (unapodized)	4, 2, optionally 1 and 0.5
Wavenumber repetability	<10ppm
Scan frequency	>4 Hz @ 4cm^-1
Control laser	Temperature-stabilized solid-state laser @850nm
A/D Converter	24 bit
Operating temperature	10°C - 40°C
Free-space input	Aperture Ø: 12.7mm Acceptance full angle: 3.2°
Removable fiber-couplers	Connector: SMA 905 Fiber core Ø: up to 1mm NA=0.25 (lensed coupler) or NA=0.3 (reflective coupler)
Power requirement	12V / 8W
Communication Interface	USB 2.0 (optionally Ethernet)
Software Interface	Windows 7/10/11 API for controlling the instrument via our DLL
Dimensions	180mm x 160mm x 80mm
Weight	1800g

동영상

적용분야
	Grating & FT-NIR spectrometers comparison This video displays the major differences between a grating based spectrometer and our FT-NIR. A live comparison is performed between a commercially available grating spectrometer and the ARCoptix FTNIR-L1-025-2TE.
	MIR DR measurement - ARCSPHERE-MIR This video showcases a compact and poweful platform for performing diffuse reflectance measurements in the mid-infrared. The ARCoptix ARCSPHERE-MIR, directly coupled to the FTMIR.-L1-120-4TE, is used as convenient sampling interface that delivers highly reproducible data. This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).
	MIR DR measurement - FTIR OEM010 with common-path accessory This video showcases a compact and poweful platform for performing diffuse reflectance measurements in the mid-infrared. The ARCoptix FTIR-OEM010-120-4TE is combined to our common-path accessory to deliver high quality DR spectra from a small spot size (~1x2mm). This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).
	VIS-NIR diffuse reflectance measurement This video illustrates how to use the ARCoptix VIS-NIR-DR spectrometer for diffuse reflectance measurements in the VIS-NIR region of the electromagnetic spectrum. The software allows to evaluate the total solar reflectance (TSR) value of any sample quickly and conveniently.
	NIR diffuse reflectance measurement This video illustrates how to install and use the ARCoptix FT-NIR spectrometer coupled to the ARCoptix ARCSPHERE-NIR for diffuse reflectance measurements in the NIR.
	MIR transmission measurement This video illustrates how to use the ARCoptix FT-MIR spectrometer for transmission measurements. Typical absorbance spectra of various polymers, such as polystyrene, are obtained using the ARCLIGHT-MIR and the FTMIR-L1-120-4TE.
