일사량/열유속/열전도도계
Heat Flux SensorFHF02
BEST Good
제품사양
| FHF02 열유속센서 | |
|---|---|
| Sensing area | 9 x 10-4 m2 |
| Temperature sensor | type T thermocouple |
| Sensor thickness | 0.9 x 10-3 m |
| Calibration uncertainty | < ± 5 % (k = 2) |
| Sensitivity (nominal) | 5.5 x 10-6 V/(W/m2) |
| Rated load on a single wire | ≤ 1.6 kg |
| Rated bending radius | ≥ 50 x 10-3 m |
| Temperature range | -40 to +150 °C |
| Sensor thermal resistance | 24 x 10-4 K/(W/m2) |
| Measurement range | (-10 to +10) x 103 W/m2 at heat sink temperature 20 °C |
| IP protection class | IP67 |
| Standard cable length | 1.5 m |

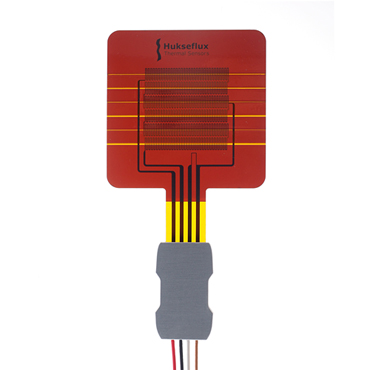

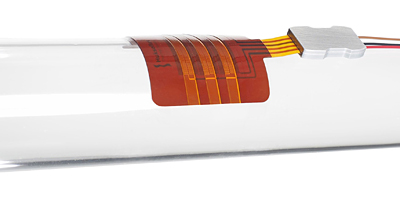

제품사진
| FHF02 | |
|---|---|
 |
|
 |
|
