Spectrometer

200-1160nmAvaSpec - HS1024TEC

UV / VIS spectrometer

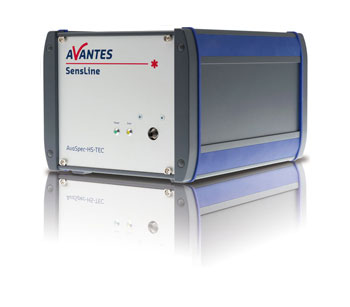

AvaSpec - HS1024TEC

  • UV/NIR에서 매우 높은 감도(2048x16/64보다 20배)
  • TE Cooled detector
  • 16 bit AD Converter (USB2.0)
  • 200-1160 nm의 넓은 파장범위
  • 액세서리를 연결하여 Application에 응용
BEST Good
제품특징
  • 제품특징 이미지
    Detector
    1024x58/122 pixels
    Back-thinned TE-cooled CCD Detector
  • 제품특징 이미지
    Wavelength range
    200~1160nm
    넓은 파장영역대역(파장영역 선택가능)
  • 제품특징 이미지
    High Sensitivity
    UV/NIR에서 매우 높은 감도 (2048x16/64의 20배)
  • 제품특징 이미지
    Thermo-Electric Cooling
    Regulated : △-20℃
  • 제품특징 이미지
    SDRAM card
    별도 PC없이 데이터 저장(옵션)
  • 제품특징 이미지
    Bluetooth
    Bluetooth
    communication(옵션)

  • 제품특징 이미지
    No moving parts
    시스템 안정성을 극대화
  • 제품특징 이미지
    Stand Alone
    PC없이 동작 가능
    2Analog output(0~5V)
  • 제품특징 이미지
    Interface
    USB 2.0 interface로 빠른 데이터 처리
  • 제품특징 이미지
    Interface
    RS-232 interface 적용
  • 제품특징 이미지
    Application
    다양한 악세사리를 연결하여 광범위한 Application에 응용
  • 제품특징 이미지
    AD Converter
    16Bit AD Converter
제품사양
Spectrometer AvaSpec-HS1024x58TEC-USB2 AvaSpec-HS1024x122TEC-USB2
Optical Bench High Sensitivity asymmetrical design 37.5mm focal length, N.A. 0.22, f/2.27
Wavelength range 200-1160 nm
Resolution 2.4 - 24 nm, depending on configuration (see table)
Stray light < 1%
Sensitivity 850,000 counts/μW per ms int. time 1,270,000 counts/μW per ms int. time
UV Quantum efficiency 80% (200-250 nm), >90% (500-750 nm)
Detector

Back-thinned TE-cooled CCD

image sensor 1024x58 pixels

Back-thinned TE-cooled CCD

image sensor 1024x122 pixels

Signal/Noise 1000 : 1
AD converter 16 bit, 250 KHz
Integration time Minimum 5.22 ms - 60 seconds 6.24 ms - 60 seconds
Interface USB2.0 high-speed, 480Mbps / RS-232, 115.200bps
Sample speed with store to RAM 5.22 ms/scan 6.24 ms/scan
Interface 5.22 ms/scan (USB2)
220 ms/scan (RS-232)
6.24 ms/scan (USB2)
220 ms/scan (RS-232)
Digital IO

HD-26 connector, 2 Analog in, 2 Analog out,

3 Digital in, 12 Digital out, trigger, synchronization

Power supply 100-240 VAC, 50-60 Hz, 35 W
Dimensions, weight 245 x 175 x 140 mm, 3.9 kg
파장영역
파장능력
Use Useable range (nm) Spectral range (nm) Lines/mm Blaze (nm) Order code
UV/VIS/NIR 200-1100 900 500 330 HS500-0.33
UV/VIS 200-660 440 1000 250 HS1000-0.25
VIS/NIR 300-1160 860 500 560 HS500-0.56
VIS 350-850 460 900 550 HS900-0.55
VIS 400-722 322 1200 500 HS1200-0.5
NIR 600-1160 350 830 900 HS830-0.9
NIR 750-990 240 1200 1000 HS1200-1.0
분해능
Grating (lines/mm) Slit size(μm)
25 50 100 200 500
500 3.8 4.5 5.5 10.5 24.0
830 2.9 3.5 4.2 7.0 15.0
900 2.7 3.2 4.1 6.8 14.5
1000 2.6 3.0 4.0 6.6 14.0
1200 2.4 2.8 3.8 6.2 13.5
